Cotton gin trash, the leftover waste from cotton processing, is a surprising source of renewable energy. With 7,000 BTU per pound, it holds significant potential for electricity generation through combustion, gasification, and pyrolysis. These methods not only reduce waste but also create new revenue opportunities for cotton producers and gin operators. For instance, a 1 MW system could generate $1 million annually if electricity is sold at 10 cents per kWh.
Key Points:
- Methods: Combustion (heat/steam), Gasification (syngas), and Pyrolysis (bio-oil).
- Efficiency: Gasification is the most efficient and eco-friendly.
- Challenges: Seasonal biomass availability, high costs, and emissions control.
- Economic Impact: Profitable for large-scale gins; smaller facilities face scalability hurdles.
Energy recovery from cotton gin trash is an untapped opportunity, but overcoming operational and environmental challenges is crucial for widespread adoption.
Gasification Research: Converting Cotton Gin Trash to Electrical Power
Methods for Energy Recovery from Cotton Gin Trash
Energy Production via Combustion
One straightforward way to generate energy from cotton gin trash is through direct combustion. This method involves burning the waste material to produce heat, which is then used to create steam that drives turbines for electricity generation. On average, combustion systems achieve about 10% efficiency in converting this energy to electricity [3].
However, burning cotton gin trash can release pollutants like particulate matter, carbon monoxide, and volatile organic compounds, especially if the material contains leftover pesticides or agrochemicals [4][2]. To minimize these risks, modern facilities use advanced systems to control emissions and reduce harmful byproducts.
Pyrolysis and Gasification Techniques
Beyond combustion, more advanced methods like pyrolysis and gasification offer improved energy efficiency and reduced pollution. These techniques are increasingly being explored for cotton gin trash energy recovery.
Gasification, in particular, has shown strong potential. Researchers at Texas A&M University successfully used a biomass-fueled fluidized bed gasifier to convert cotton gin trash into syngas, a fuel that can power electrical generators [1].
"The process is gasification. We limit the amount of air to thermally convert the biomass so the products are combustible gases. These are collectively called synthesis gas. Carbon monoxide and hydrogen, plus a little methane, ethylene, these are a combustible mixture." - Dr. Sergio Capareda, AgriLife Research agricultural engineer [1]
Pyrolysis, on the other hand, heats the cotton gin trash in an oxygen-free environment to produce bio-oil. This bio-oil is easier to store and transport compared to raw biomass and generates fewer pollutants than combustion [1].
Here’s a comparison of these methods:
| Method | Primary Output | Efficiency | Environmental Impact |
|---|---|---|---|
| Combustion | Heat/Steam | ~10% | Higher emissions, pollutant risk |
| Pyrolysis | Bio-oil | Higher than combustion | Lower emissions, fewer pollutants |
| Gasification | Syngas | Highest | Lowest emissions |
These approaches show how cotton gin trash can be transformed into a source of renewable energy while addressing environmental concerns. They also lay the groundwork for further improvements in energy recovery technologies.
Impacts of Energy Recovery on Environment and Economy
Environmental Effects
Recovering energy from cotton gin trash helps minimize waste from traditional disposal methods like incineration or landfilling, which are increasingly restricted due to environmental concerns [2]. By converting this agricultural waste into energy, it offers an alternative that reduces environmental harm.
The environmental impact varies depending on the region. For example, the High Plains area sees fewer emissions because cotton production there involves less pesticide use [4]. These regional differences play a key role in determining how energy recovery systems affect the environment.
Technological advancements like gasification have shown to be more environmentally friendly. Researchers at Texas A&M University have successfully used a biomass-fueled fluidized bed gasifier that emits fewer pollutants compared to direct combustion methods [1].
While these environmental benefits are promising, the economic side of these systems is critical for broader adoption.
Economic Factors
Larger cotton gin operations benefit more financially from energy recovery systems. For instance, a 1 megawatt system can generate about $1 million in gross revenue annually if electricity is sold at 10 cents per kilowatt-hour [1].
The size of the gin operation determines the power plant capacity required for energy recovery, as outlined here:
| Gin Size (Bales per Hour) | Required Power Plant Size |
|---|---|
| 20 BPH | 1 MW |
| 40 BPH | 2 MW |
| 60 BPH | 3 MW |
However, high setup costs, seasonal availability of cotton gin trash, and regulatory hurdles present challenges [4][2]. Even with these obstacles, energy recovery systems can enhance the sustainability of cotton ginning operations and create new revenue opportunities.
Scaling these systems comes with its own set of challenges, which will be discussed in the next section.
sbb-itb-0e617ca
Challenges and Future Directions
Current Challenges
The short operating season for cotton ginning - typically just 2-3 months a year - makes it tough to maintain a steady supply of feedstock for energy production facilities [4]. Adding to the complexity, many gins in places like Texas are small-scale operations, processing fewer than 5,000 bales annually. This scattered setup makes centralized energy recovery logistics a real headache [4].
Another major hurdle is dealing with emissions. Burning cotton gin trash can release harmful chemicals like arsenic acid, which means advanced (and often expensive) emission control systems are a must [4][2]. Here's a quick breakdown of the main challenges:
| Challenge Category | Key Issues | Impact |
|---|---|---|
| Operational | Seasonal availability, inconsistent biomass | Limited year-round operation, lower efficiency |
| Environmental | Chemical emissions | Higher costs for emission controls |
| Economic | High upfront costs | Long payback periods |
Tackling these issues is critical to realizing the potential of cotton gin trash as a renewable energy source. It’s going to take focused research and new technologies to make these systems more efficient and viable.
Future Research and Development
The next big step for cotton gin trash energy recovery lies in advancing cleaner and more efficient technologies. One promising avenue is gasification, as shown by Texas A&M University's work with a biomass-fueled fluidized bed gasifier [1].
Future research needs to zero in on three key areas: improving feedstock consistency, cutting emissions, and developing cost-effective solutions for smaller gins [1][2][3]. Balancing environmental gains with economic feasibility is essential. To help gin operators decide if energy recovery systems make financial sense, researchers are creating economic evaluation models [2]. These tools could play a big role in encouraging broader adoption across the cotton ginning industry.

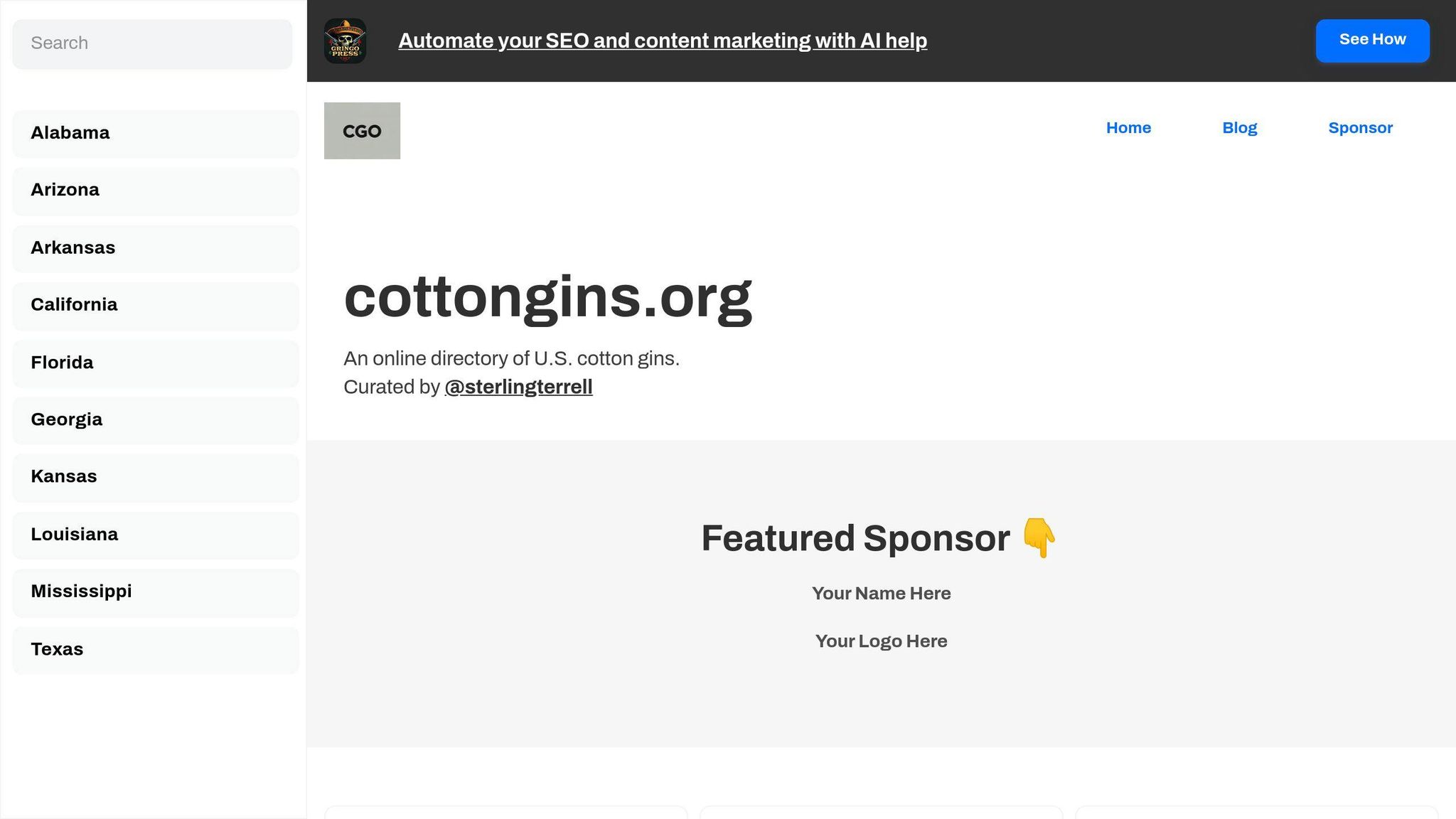

Role of cottongins.org in the Industry
Connecting Stakeholders
Cottongins.org plays a key role in mapping cotton gin locations, making it easier for researchers and investors to find biomass clusters and collaborate with operators on energy recovery projects. For instance, Texas processes 3 to 4 million cotton bales annually, with each bale producing about 700 pounds of waste that could be turned into energy [4]. By offering centralized access to this data, the platform helps drive projects aimed at making the most of biomass resources.
Here’s how the platform supports researchers and investors:
- Pinpointing facility clusters ideal for centralized energy recovery projects
- Evaluating regional biomass availability to ensure steady energy production
- Building connections with gin operators open to adopting advanced technologies
Resource Utilization for Energy Projects
Cottongins.org also provides detailed facility information, helping assess the feasibility of energy recovery projects across various regions. Its networking tools encourage collaboration between technology providers, researchers, and gin operators, paving the way for knowledge exchange and the adoption of advanced energy recovery methods.
The platform’s sponsorship opportunities further contribute to the industry by:
- Showcasing advancements in energy recovery technologies
- Bridging gaps between different stakeholders
- Encouraging collective efforts to enhance practices in the cotton ginning sector
These features are especially crucial as the industry works toward improving energy recovery processes and tackling technical challenges through shared expertise and collaboration.
Conclusion: Potential of Cotton Gin Trash for Energy
Key Points Recap
Cotton gin trash offers a largely untapped opportunity as a renewable energy source, especially through methods like gasification and combustion. Studies, such as those conducted at Texas A&M University, have shown encouraging results. For example, researchers successfully operated a biomass-fueled fluidized bed gasifier using cotton gin trash to produce electricity [1].
Dr. Sergio Capareda highlighted the economic potential of this approach:
"With electricity priced at 10 cents per kilowatt-hour, a 1 MW system can generate $1 million in annual revenue." [1]
However, tapping into this resource fully depends on addressing operational and technical hurdles.
Future Outlook and Industry Impact
The future of energy from cotton gin trash hinges on overcoming challenges like emissions control and ensuring a steady supply of feedstock. Advances in gasification technology are already improving efficiency and reducing emissions [4]. This makes the approach increasingly attractive, particularly in areas with high energy costs.
Recovering energy from this waste can do more than just generate power - it can lower disposal costs, create new revenue streams, and promote sustainable farming practices while supporting local energy needs.
Moving forward, further investment in research and development is essential. Efforts should focus on refining processing methods and building stable markets for energy products. With the right strategies and collaboration across the industry, energy recovery from cotton gin trash could become a widely adopted practice, benefiting both the environment and the agricultural sector.
