Cotton gin drying systems are critical for producing high-quality cotton, but they consume a lot of energy - accounting for about 25% of total variable ginning costs. Operators spend an average of $4.44 per bale on electricity and $1.67 on dryer fuel, with drying systems operating at less than 15% thermal efficiency. Here’s how to address these challenges:
Key Takeaways:
- Electricity (61%) and fuel (39%) are the main energy sources. Reducing friction in conveying systems and upgrading motors can cut electricity use.
- Moisture control is vital: Adjust drying temperatures based on cotton moisture levels to save fuel.
- Efficiency tips: Insulate pipes, optimize burner placement, and maintain steady ginning rates.
Quick Actions:
- Use high-efficiency motors and simplify ductwork.
- Shut off burners for cotton with moisture below 7%.
- Leverage USDA REAP grants and energy audits for system upgrades.
Reducing energy use not only lowers costs but also supports sustainable production. Start with these strategies to improve efficiency and save money.
Optimizing Drying Energy Consumption
Energy Consumption in Cotton Gin Drying Systems
Cotton gin drying systems primarily use two energy sources: electricity and fuel. To keep operations efficient, it's important to understand how much energy is used and what factors influence these costs.
Energy Types Used
Electricity makes up 61% of the total energy usage, while fuel accounts for the remaining 39%[2][3]. On average, electricity costs $4.44 per bale, representing 13% of processing costs. Fuel costs range from $0.98 to $3.39 per bale, contributing 6.5-8.5% of ginning expenses. While knowing these numbers is helpful, pinpointing the factors behind these costs is key to making improvements.
Factors Affecting Energy Use
Moisture in incoming cotton plays a big role in energy consumption, particularly for fuel. On the other hand, using high-efficiency motors and fine-tuning mechanical conveying systems can significantly cut down on electricity use[1].
"Reducing unnecessary friction losses in conveying systems and using only the volume of air necessary for consistent conveying and adequate drying can also help reduce energy use"[4].
Energy Audit Findings
Research from USDA-ARS ginning labs found that proper burner placement and insulation can help balance out fuel consumption, even when moisture levels and weather conditions vary[3]. The Cotton Ginners Handbook also notes that energy costs have grown from 15% of total operational costs in 1994 to 25% by 2013[4], highlighting the increasing importance of managing energy use in ginning operations.
These insights point to areas where focused changes can lead to noticeable energy savings.
sbb-itb-0e617ca
Methods to Reduce Energy Costs
Cotton gin operators can cut energy expenses by focusing on upgrades to drying systems and adopting smarter operational practices. These changes not only lower costs but also align with industry goals for more efficient operations.
Boosting Drying System Efficiency
To reduce heat loss, position burners close to the mix point and insulate the pipes[3]. Adjust drying temperatures based on the cotton's moisture levels to conserve fuel. For cotton with moisture content below 7%, shutting off burners entirely can avoid wasting fuel[3].
| Drying System Type | Features | Best Use Case |
|---|---|---|
| Cross-flow | Energy-saving design | Consistent moisture levels |
| Concurrent flow | Adapts to moisture changes | Variable moisture content |
| Counterflow | Maximizes heat transfer | High moisture situations |
Increasing Electrical Efficiency
Material handling accounts for about 50% of the power used in cotton gins[2]. Switching to high-efficiency motors can significantly reduce electricity consumption[1]. Additionally, upgrading fans and simplifying ductwork can minimize turbulence and energy loss[2].
Smarter Operational Practices
Maintaining steady ginning rates is key to lowering energy costs per bale[4]. Consider these steps for better efficiency:
- Adjust airflow and drying temperatures using real-time moisture data.
- Turn off equipment when not in use to avoid unnecessary energy use.
Resources for Cotton Gin Operators
Cotton gin operators aiming to cut energy costs and improve efficiency have access to a range of programs and tools. These resources can help implement energy-saving measures while tapping into funding opportunities to offset expenses.

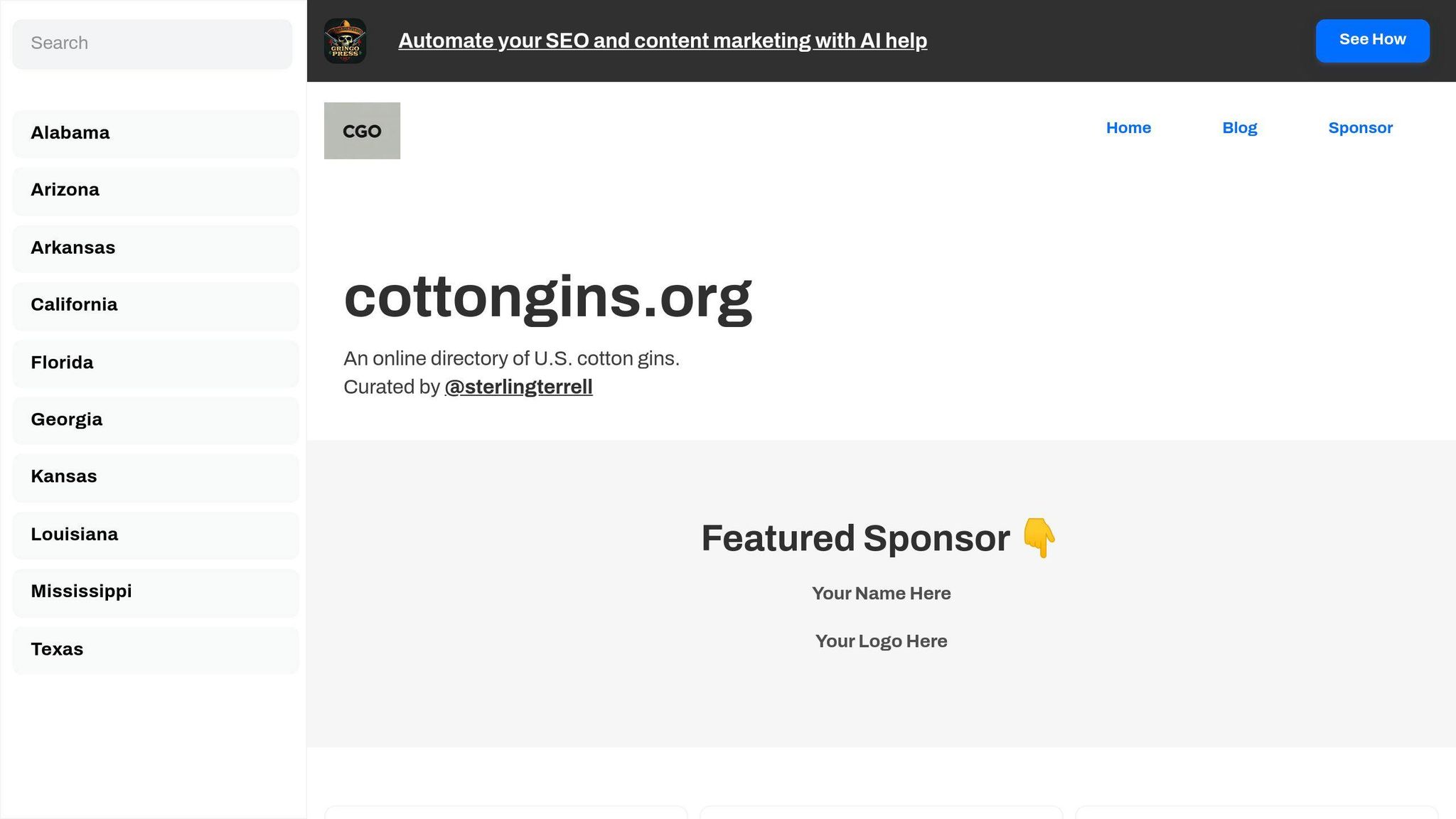

cottongins.org: A Hub for Networking and Resources
Cottongins.org is a valuable platform for operators to connect with industry peers and stay informed about the latest developments. It offers networking opportunities to exchange ideas and best practices for improving energy efficiency. Beyond collaboration, the site provides information on financial assistance programs that can help cover the costs of energy-saving upgrades.
Funding Opportunities and Support Programs
The USDA's Rural Energy for America Program (REAP) is a key resource for energy efficiency projects. Programs like REAP and EPA grants can help cover part of the project costs, but operators need to demonstrate energy savings and meet specific eligibility requirements.
To strengthen grant applications, energy audits are critical. These audits identify inefficiencies, provide baseline data, and include projected savings calculations. Consulting with local agricultural extension offices can also offer valuable guidance during the application process.
The EPA offers additional support for reducing greenhouse gas emissions in agriculture, creating more funding opportunities for system upgrades. Meanwhile, the Cotton Ginning Research Unit (CGRU) provides expert advice on improving drying efficiency, helping operators lower energy expenses and enhance overall operations.
Conclusion
Key Insights
Energy consumption in cotton gin drying systems presents clear opportunities to cut costs, especially in fuel and electricity usage. Current thermal efficiency in these systems is less than 15%, with gas costs ranging from $0.98 to $3.39 per bale [2]. These numbers emphasize the need for adopting energy-efficient practices.
"Energy use and conservation in cotton gins is an important aspect of sustainability, and gins need to reduce costs to stay profitable." - Paul A. Funk, USDA-ARS [4]
Looking Ahead
To build on these findings, the industry should prioritize solutions that enhance energy efficiency. The most efficient operations maintain steady ginning rates with minimal downtime, achieving energy use as low as 27.7 kWh per bale by operating consistently at peak performance [4].
Steps to achieve this include:
- Using automated systems for better moisture control
- Leveraging real-time monitoring tools
- Designing improved drying systems
- Encouraging knowledge-sharing within the industry
The way forward involves a mix of immediate upgrades and long-term investments in technology. By cutting energy use, cotton gins can reduce costs and align with broader goals for sustainable cotton production. As technology advances, the focus remains on practical, cost-conscious solutions that support the growing demand for sustainable practices.
